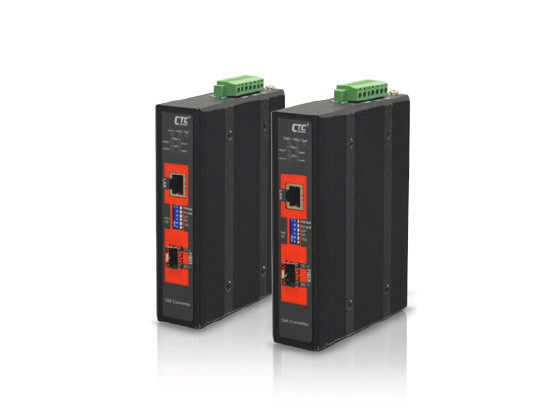

Bộ chuyển đổi quang điện - IMC-1000S

Tính năng:

• Conversion between 10/100/1000Base-T and 100/1000Base-X Fiber cable interface
• Supports dual rate (100/1000) SFP for selectable Fast or Gigabit speed on fiber
• 12/24/48VDC (9.6~57VDC) redundant dual input power with built-in very high efficiency booster (97~99%) to rise up 55 VDC for PoE output
• Regulate PoE output voltage (55VDC) to stabilize PoE device, and guarantee delivery PoE power distance to 100meter (Figure 2)
• Provides IEEE 802.3at PoE output (30Watts)
• Supports Remote PD reset by fiber port link down (Figure 3)
• Supports LFPT (Link Fault Pass Through)
• IP30 rugged metal housing and fanless
• Wide operating temperature -20~75°C
• CE, FCC, Railway traffic EN50121-4 certification
• Heavy industrial grade EMS,EMI EN61000-6-2, EN61000-6-4 certification
