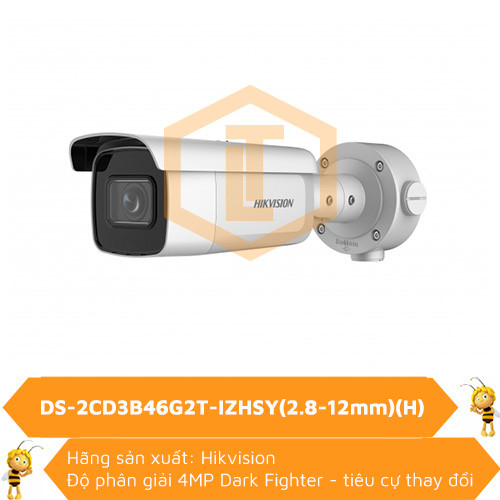

Camera thân cố định HIKVISION DS-2CD3B46G2T-IZHS(Y)

Name: Camera thân cố định HIKVISION DS-2CD3B46G2T-IZHS(Y)
Brand: Hikvision
SKU: CA5927
Availability: InStock
Rating: 5 (1 reviews)

Thương hiệu: Hikvision | Tình trạng: Hết hàng

Cam kết chính hãng 100%

Bảo hành 12 tháng (click xem chi tiết)

Đổi trả hàng trong 7 ngày (click xem chi tiết)

Mô tả
Đánh giá (0)

Camera thân cố định HIKVISION DS-2CD3B46G2T-IZHS(Y)

Mã: DS-2CD3B46G2T-IZHSY(2.8-12mm)(H), đáp ứng Quyết định 247/QĐ-TCHQ năm 2022 QUY ĐỊNH VỀ CÁCH THỨC KẾT NỐI, TRAO ĐỔI DỮ LIỆU HỆ THỐNG CA-MÊ-RA GIÁM SÁT CỦA DOANH NGHIỆP CHẾ XUẤT VỚI CƠ QUAN HẢI QUAN THEO KHOẢN 10 ĐIỀU 1 NGHỊ ĐỊNH SỐ 18/2021/NĐ-CP VÀ VIỆC GIÁM SÁT HẢI QUAN ĐỐI VỚI DOANH NGHIỆP CHẾ XUẤT THÔNG QUA HỆ THỐNG CA-MÊ-RA

Máy ảnh

Image Sensor: 1/1.8" Progressive Scan CMOS
Max. Resolution: 2688 × 1520
Min. IlluminationColor: 0.0014 Lux @ (F1.4, AGC ON),B/W: 0 Lux with IR
Day & Night: IR cut filter
Angle Adjustment: Pan: 0° to 355°,tilt: 0° to 90°,rotate: 0° to 360°
Shutter Time: 1/3 s to 1/100,000 s

Lens

Focal Length & FOV

8 to 12 mm: horizontal FOV 114° to 41.8°, vertical FOV 59.3° to 23.6°, diagonal FOV 141.3° to 48.1°
8 to 32 mm: horizontal FOV 42.5° to 15.2°, vertical FOV 23.4° to 8.7°, diagonal FOV 49.7° to 17.3°

Lens Type: Varifocal lens, motorized lens, 2.8 to 12 mm and 8 to 32 mm optional
Aperture: 2.8 to 12 mm: F1.4; 8 to 32 mm: F1.7
Lens Mount: Integrated
FocusAuto,Semi-auto,Manual
Depth of Field

8 to 12 mm: 1.5 m to ∞
8 to 32 mm: 7.5 m to ∞

Iris TypeP-iris

DORI

DORI

8 to 12 mm: D: 60 to 149 m, O: 23.8 to 59.1 m, R: 12 to 29.8 m, I: 6 to 14.9 m
8 to 32 mm: D: 150.3 to 400 m, O: 59.7 to 158.7 m, R: 30.1 to 80 m, I: 15 to 40 m

Illuminator

IR Wavelength850 nm
Supplement Light Range2.8 to 12 mm: up to 60 m; 8 to 32 mm: up to 80 m
Smart Supplement LightYes
Supplement Light TypeIR

HEOP

Open Resources

Memory: 60 MB,
Smart RAM: 400 MB,
eMMC: 2 GB

Computing Power1.5 TOPS
Open CapabilityHEOP 2.0 OpendevSDK
Deep Learning StructureCaffe,PyTorch,TensorFlow,PaddlePaddle,ONNX
Programming LanguageC,C++

Video

Main Stream

50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)

Third Stream

50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)

Fourth Stream

50 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1280 × 720, 640 × 480, 640 × 360)

Video Compression

Main stream: H.265/H.264/H.264+/H.265+,
Sub-stream: H.265/H.264/MJPEG,
Third stream: H.265/H.264,
Fourth stream: H.265/H.264/MJPEG

Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile,Main Profile,High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR,VBR
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)5 fixed regions for main stream and sub-stream
Target CroppingYes
e-PTZSupport Preset and Auto Tracking settings

Audio

Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio TypeMono sound
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise FilteringYes

Network

ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SFTP, ARP, SNMP, WebSocket, WebSockets
Simultaneous Live ViewUp to 6 channels
APIONVIF (Profile S, Profile G, Profile T),ISAPI,SDK,ISUP
User/Host

Up to 32 users
3 user levels: administrator, operator, and user

SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
Network Storage

NAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),
Together with high-end Hikvision memory card, memory card encryption and health detection are supported.

ClientiVMS-4200,Hik-Connect,Hik-Central
Web Browser

Plug-in required live view: IE 10, IE 11,
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


Image Parameters SwitchYes
Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
Day/Night SwitchDay,Night,Auto,Schedule
Wide Dynamic Range (WDR)140 dB
Image EnhancementBLC,HLC,3D DNR,Defog
SNR≥ 52 dB
Privacy Mask4 programmable polygon privacy masks

Interface

Alarm3 inputs, 3 outputs (max. 24 VDC/24 VAC, 1 A)
Audio

1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Reset KeyYes
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
Power Output12 VDC, max. 100 mA

Event

Basic EventMotion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
Smart Eventscene change detection,audio exception detection,defocus detection, unattended baggage detection,object removal detection
LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger alarm output,trigger recording,trigger capture,audible warning

Deep Learning Function

Face CaptureYes
People CountingYes
Perimeter Protection

Line crossing, intrusion, region entrance, region exiting
Support alarm triggered by specified target types (human and vehicle)

General

Power

12 VDC ± 25%, 1.20 A, max. 14 W,two-core terminal block,
24 VAC ± 20%, 1.03 A, max. 14 W,
PoE: IEEE 802.3at, Class 4, max. 17 W

MaterialAluminum alloy body
DimensionØ105 mm × 340.7 mm (Ø4.1" × 13.4")
Package Dimension385 mm × 190 mm × 180 mm (15.2" × 7.5" × 7.1")
WeightApprox. 1455 g (2.9 lb.)
With Package WeightApprox. 2256 g (4.9 lb.)
Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
General FunctionHeartbeat,anti-banding,mirror,flash log,password reset via email,pixel counter
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
HeaterYes

Approval

FCC: 47 CFR Part 15, Subpart B,
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
RCM: AS/NZS CISPR 32: 2015,
IC: ICES-003: Issue 7,
KC: KN32: 2015, KN35: 2015
