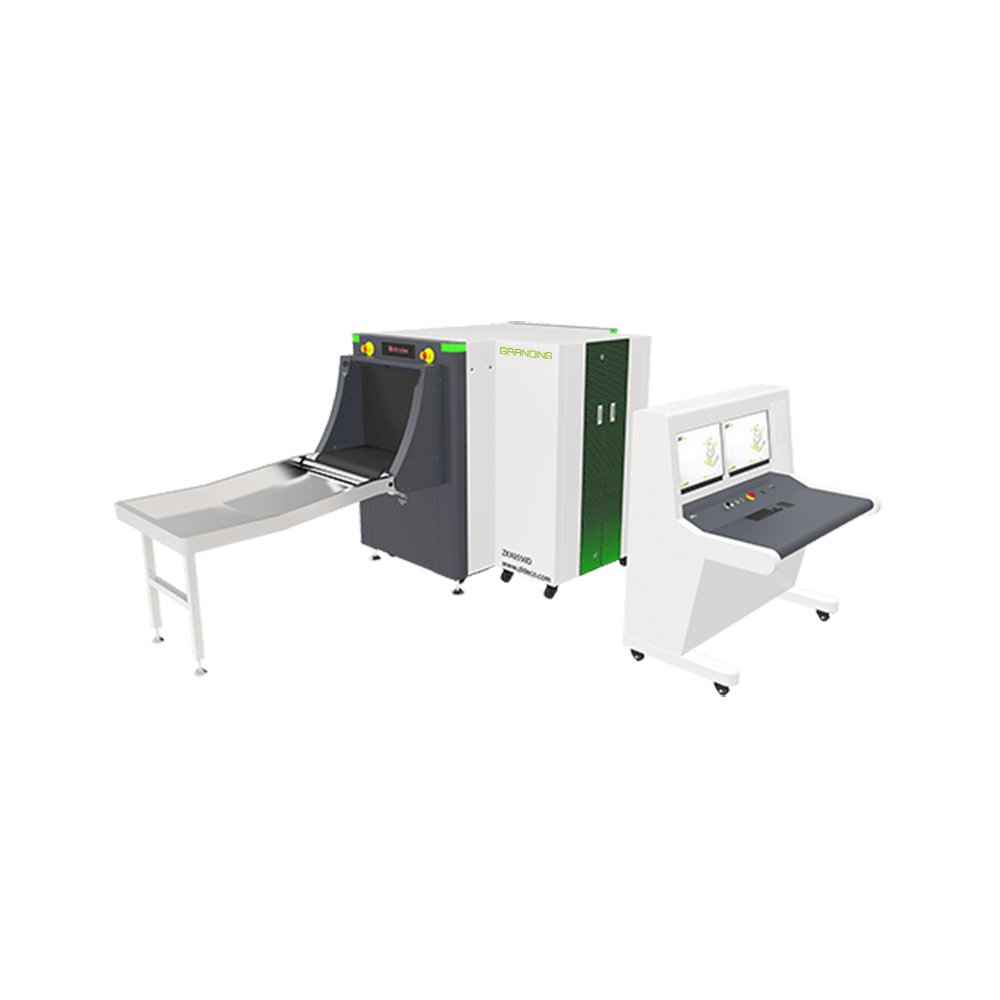

Máy soi chiếu hành lý ZKX6550D

Parameters

• Tunnel Size

  W650mm × H500mm

• Speed

  0.20 m/s

• Height of Transmission Belt

  650 mm

• Maximum Load

  ≤180 kg (Adequate distribution)

• Wire Resolution

  Bottom Generator: 38AWG \ Side Generator: 38AWG

• Space Definition

  Horizontal Φ1.0mm \ Vertical Φ2.0mm

• Penetrate Definition

  Bottom Generator: 32AWG \ Side Generator:32AWG

• Penetration

  Bottom Generator: 38mm \ Side Generator: 38mm

• Monitor

  21.5 inch LED x 2

• System Function

  High density alert, Explosive / Drug auxiliary detect,TIP, Luggage counter, date/time display, User management, Training.

• Film Safety

  ASA / ISO1600 standard of film safety

• X-ray System



• Tube Voltage

  140KV

• Cooling

  Seal oil cooling / 100%

• Single Inspection Dosage Rate

  ≤1.0 μ Gy

• Radiation Leak Dosage

  0.1 μ Gy/h (5cm from the surface)

• Installation Specification



• Size (L*W*H)

  2350mm × 1320mm × 1332mm

• Console Desk Size (L*W*H)

  1320mm × 900mm × 1320mm

• Package Size

  2500mm × 1600mm × 1550mm

• Package Weight

  1000KG+135KG (Console desk)

• Power Consumption

  1.5 kVA

• Noise

  55 dB(A)
