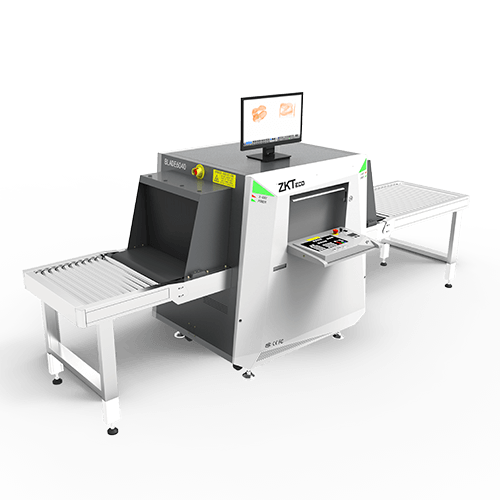

Máy soi hành lý Zkteco BLADE6040

Máy soi hành lý Zkteco BLADE6040

Parameters

• Tunnel Dimensions (W*H)

  610 * 420 mm

• Conveyor Speed

   0.20 m/sec. ~ 0.40 m/sec

• Load on Conveyer

   max. 200kg (evenly distributed)

• Space Definition

  Horizontal Φ1.0mm Vertical Φ2.0mm

• Steel Penetration

  40mm

• Wire Resolution

   38AWG

• Dual-energy Detector

  Yes

• Number of Colors in X-ray Image

  3

• Dimensions (L*W*H)

  1987.5*1023.9*1317mm

• Package Dimensions (L*W*H)

  2600mm * 1250mm * 1600mm

• Package Weight

  750kg

• Film Safety

  ASA / ISO1600 standard of film safety

• Radiation Leak Dosage

  0.1μ Gy/h (5cm from the surface)

• Operating Temperature

   -10°C to +45°C

• Storage Temperature

  -20°C to +60°C

• Power Supply

  230 VAC +/- 10% / 60 / 50 Hz (EU)
  110 VAC +/- 10% / 60 / 50 Hz (US)

• Power Consumption

   700W

• Sound Pressure

  < 51.8dB (A)

• Tube Current

  0.5 - 0.1 mA (adjustable)

• Anode Voltage

  150-170 kV(adjustable)

• Generator Cool

  Seal oil cooling / 100%

• RAM

  4 GB DDR3

• Hard Drive

  120GB SSD+1TB HDD

• Graphic Card

  GT730-2G

• Software Features

  Perfect View (PV)
  Black / White (B/W)
  Pseudo Colors (PS)
  Inverse View (IN)
  High Penetration (HP)
  Real Time Image Processing
  Image Zoom(128x)
  Image of Previous Baggage
  Programmable Function Keys
  Baggage Counter
  Date / Time Indicator
  Threat Image Projection (TIP)

• Supported Software

  ZKBio SIS
